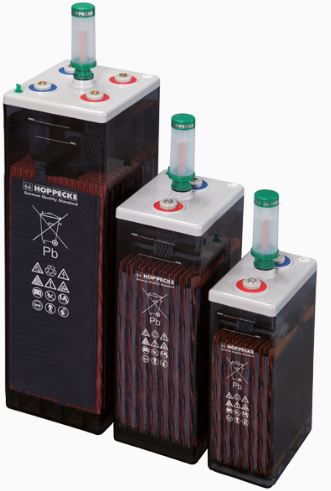

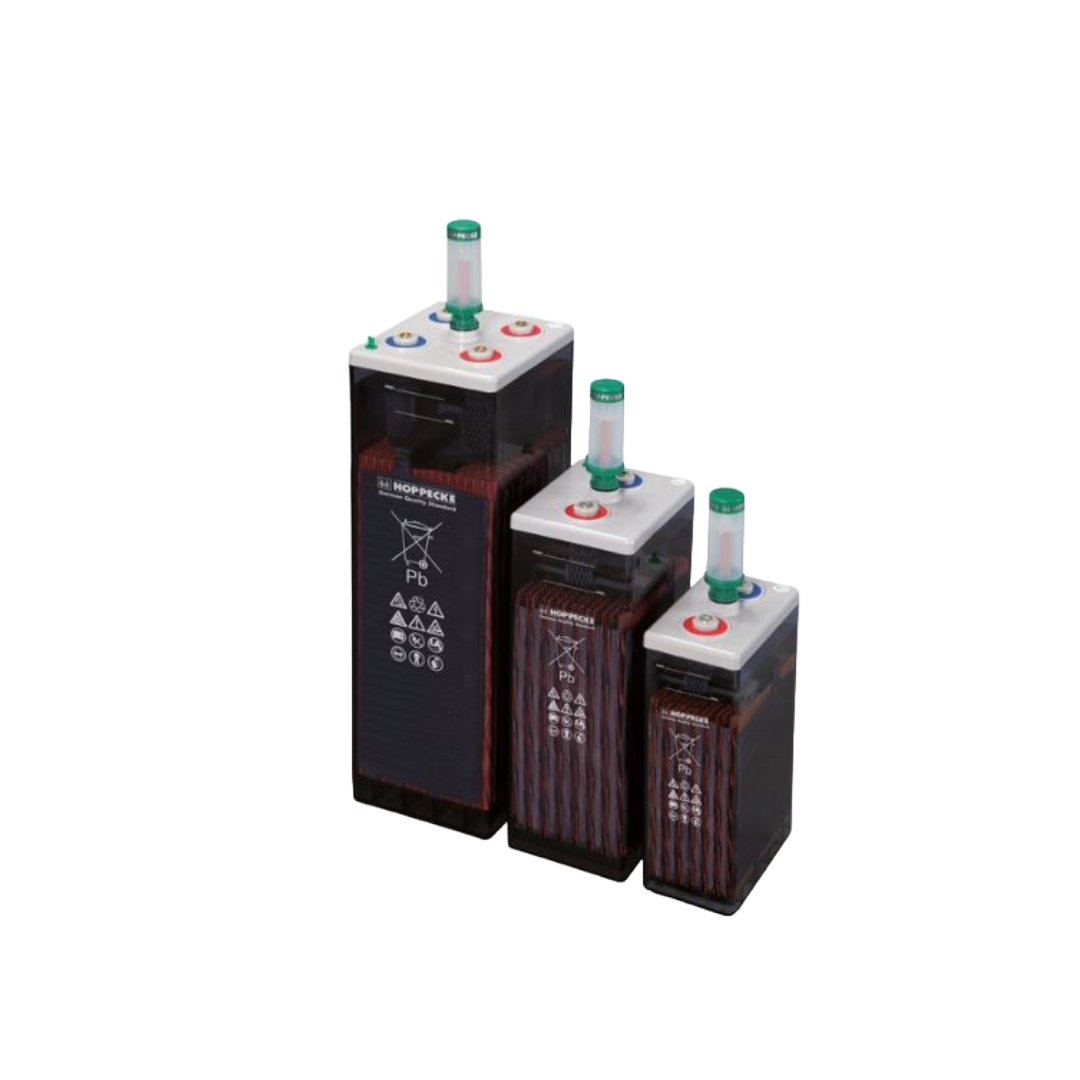

grid l power V MThe HOPPECKE grid | power V M is a vented, stationary, lead-acid battery with liquid electrolyte. It is particularly characterised by a 3D structure for the positive electrode. It is designed for high current applications and lasts for up to 20 years. A combination of high energy density and small footprint enables existing facilities to be used in the most efficient manner. These outstanding features and the wide capacity span of the HOPPECKE grid | power V M product range makes it the ideal energy supply for use in power plants, railway and UPS systems.

Combination with the grid | aquagen recombination system lengthens the interval between water refills almost to the point where no maintenance is required, thus significantly reducing operating costs.

ADVANTAGES:

  • Very good high current capability
  • Low investment costs
  • Very long service life
  • Increased short-circuit protection already during assembly
  • Extremely extended water refill intervals up to maintenance-free operation

MAIN PERFOMANCE:

  • Nominal voltage: 2 Vdc
  • Nominal capacity: 105 Ah to 3780 Ah
  • Technology: FLOODED
  • Contact: Top Terminal
  • Life time: 20 years

APPLICATIONS:

  • Switchgear,
  • Telecommunication,
  • Power Supply Systems,
  • Railway.
