Modular Battery ChargerModular Multidirectional Converter is a fully bidirectional power converter.

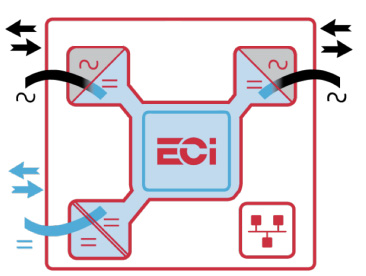

Each module is equipped with three ports – two AC and one DC – all capable of functioning both as input or output. This allows securing the AC & DC loads and charging the batteries simultaneously.

Modular Multidirectional Converter is also the right choice for energy management applications such as:

  • Grid reinjection,
  • Peak shavings,
  • Phase balancing or
  • Innovative solutions based on energy sharing via a DC distribution.

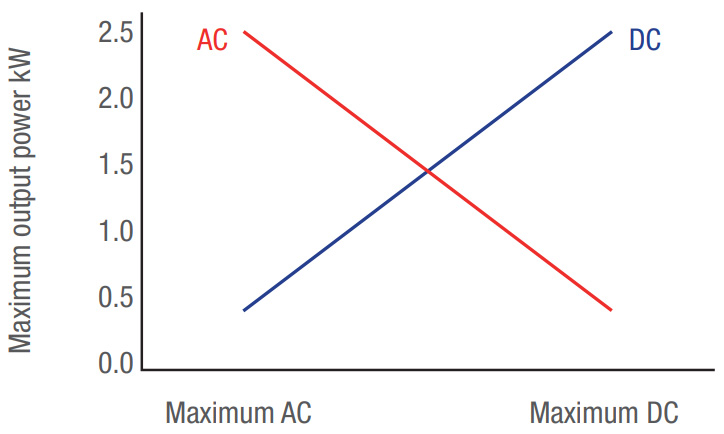

At the heart of each module lies a DC energy buffer, utilizing energy from any source to power necessary loads. The total output power is dynamically shared (real-time) between the loads and the batteries. It’s that simple! No configuration is required, you are totally autonomous.

MAIN FEATURES:

  • Secure AC & DC loads
  • Modular design
  • Hot-swappable
  • Power: 1,2kW modules up to 35kW per system; 2,7kW modules up to 2MW per system
  • Highest power density
  • Single-phase system
  • Three-phase system
  • Internal static switch
  • Transfer time 0 msec
  • 19’’ Rack Design
  • Compact, easy to install and operate
  • Internal or external battery
  • User-friendly monitoring

AVAILABILITY:

  • N+1 Redundancy
  • Galvanically isolated
  • Local and remote control
  • Overvoltage protection for system and modules
  • Enable the additional power extension

ECONOMIC EFFICIENCY:

  • Using the existing battery
  • Low Mean Time to Repair (MTTR)
  • Reduction in service costs
  • High performance alongside low volume and weight
  • All-inclusive system

APPLICATIONS:

  • Power Utilities
  • Renewable
  • Industry
  • Telecom
  • Datacom
  • Infrastructure
